Socket Weld Flange

Socket Weld Flange

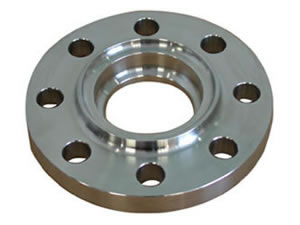

Our socket weld flange, a kind of pipe flange, is designed and manufactured for use on small diameter and high pressure applications. It is similar to slip-on flange in the fabrication, but it has greater fatigue strength when provided with an internal weld. Since its counter bore is larger than OD of the matching pipe, the pipe can be inserted.

Size
Socket weld flange: 3/8"~3"
DN10~DN80

Pressure
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500
European Series: PN 6,PN 10,PN 16,PN 25, PN 40,PN 63,PN 100

Flange Facing Types
American Series: Raised Face(RF), Tongue(T), Groove(G), Female(F), Male(M), Ring Joints Face(RJ)
European Series: Type B(Raised Face), Type C(Tongue), Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot), Type H (O-Ring Groove)

Materials
Carbon Steel: ASTM/ASME A105, ASTM/ASME A516 Grade 55-60-65-70
Alloy Steel: ASTM/ASME A182 F1-F12-F11-F22-F5-F9-F91-F911-F92
Stainless Steel: ASTM/ASME A182 F304-F304H-F304L-F304N-F304LN F316-F316H-F316L-F316N-F316LN F321-F321H F347-F347H, ASTM/ASME A182 F51-F52-F53-F54-F55-F60-F61
Low-Temperature Steel: ASTM/ASME A522, ASTM/ASME A707 Grade L1-L2-L3-L4-L5-L6-L7-L8
High-Strength Steel: ASTM/ASME A694 F42-F46-F48-F50-F52-F56-F60-F65-F70

Standards
ASME B16.5-2013
EN 1092-1-2007, EN 1759-1-2004
ISO 7005-1-1992
GB/T 9112-2010, GB/T 9117-2010
HG/T 20592-2009, HG/T 20615-2009
SH/T 3406-2013
GOST- AFNOR- BS- DIN

Industrial Processes
Die forging, Machining

Industries Served
Power generation, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy

As a foremost socket weld flange manufacturer in China, we at Ahad adopt a strict quality control system to ensure good quality. Our industrial flanges have been certified by ISO 9000, Pressure Equipment Directive 97/23/EC (PED 97/23/EC), AD2000 Merkblatt W0, and API. They are widely used in many countries, for example Italy, Germany, Spain, France, Russia, the United States, Brazil, Iran, India, and so on.
For a complete list of industry pipe fittings, please see our product page!
